| Please Call for Pricing |
| Specification Sheet |

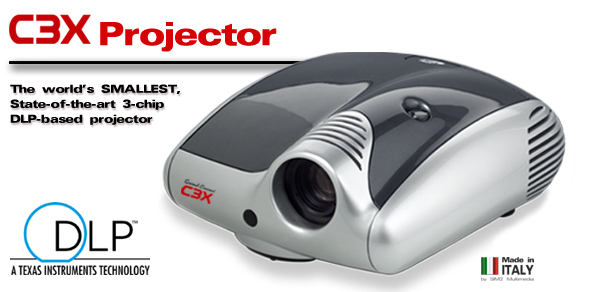

Key Points
- COMPACT 3-chip DLP™ -based Light Engine by SIM2
- Customized lenses and prisms
- Extraordinarily vibrant colors and true blacks
- Excellent contrast ratio: 6500:1 typical
- Supreme flexibility of spurious particles-free, high quality glass lens options
- Solar brightness
- SIM2's Live Color Management and Gamma correction
- Latest generation DLP™ technology
- Future-proof inputs
- HD Ready
- Extremely compact
- Aggressive cabinet design
|
Light Engine
DLP™ Type: 3 Chip DMDs HD2+ DC3
Resolution: 1280x720 pixels
Lens: High Quality, high resolution improved optics for higher contrast and better black level with both motorized zoom and focus adj.
Brightness: 2500 Ansi Lumens
Lamp power consumption: 250W
Installation
Throw ratio: 2,0-3,0:1 (standard lens - type T2) or 1,5-2,0:1 (type T1 – on request)
Lens shift: half up picture =+50%
Digital keystone adjustment
Picture size (inches diagonal): 50-300
Aspect ratio: 4:3, 16:9 Anamorphic, LetterBox, panoramic, pixel to pixel + 3 custom-user adjustments
Electronics
Horizontal & vertical scan freq.: 15-80kHz/48-100Hz
SDTV: PAL (B,G,H,I,M,N,60); SECAM; NTSC 3,58; NTSC 4,43 automatically selected
HDTV: ATSC (480p, 720p, 1080i, 1080p); 576p + 1080i 50Hz
PC graphic standard: VGA, SVGA, XGA, SXGA, UXGA @ 65Hz
On Board Video Processing
Contrast ratio (Full ON/ Full OFF): 6500:1- typical
Inputs/Outputs
1 x S-Video (mini DIN 4 pins)
1 x Composite Video (RCA)
1 x RGBS-YCrCb (4 RCA)
1 x RGBHV (D-Sub 15 pin)
1 x HDMI™-HDCP compliant
1 x OUT Digital Audio (Toslink)
1 x USB connector
1 x RS232 (D-Sub 9 pin)
2 x 12 V 100 mA (via jack)
1 x Input External IR sensor
General Specifications
Software control: upgradable via RS232 serial interface and USB
Weight: 11 Kg.
Dimensions (WxHxD): 435x190x430 mm
Supplied Accessories
Installation and User Manual
AC power cords (2m)
Backlit remote control and batteries HDMI™ cable (2m)

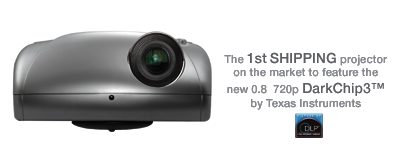

| HT300 E: Your link to E-volution | |
 |
| Key Points - The first projectors to feature HD2+ DC3 chip (0.8" 720p DarkChip3™) by Texas Instruments - True contrast ratio: >3500:1 - 1280 x 720 pixel (WXGA) resolution - New Phono Absorbent Materials - New SIM2 Live Colors Management and Gamma adjustment - Intelligent picture memory functions - HDMI™ input - Near silent 6 segment color wheel with color corrected filters - SIM2 proprietary alpha-path light engine - SIM2 proprietary projection lens design - DCDi™ by Faroudja built-in - Lens shift and digital keystone adjustment - Long Throw Ratio zoom lens |
|
Light Engine
DLP™ Type: 1 chip DMD HD2+ DarkChip3™
Resolution: 1280 x 720 pixels
Lens: High Quality, high resolution improved optics for higher contrast and better black level with both motorized zoom and focus adj.
Lamp power & life time*: 120W 8000 hours
Installation
Throw ratio: 1,8-2,4:1
Lens shift: V+/-8°
Digital keystone adjustment: V+/-18°; H+/-10°
Picture size (inches diagonal): 50-250
Aspect ratio: 16:9 Anamorphic, LetterBox, panoramic, pixel to pixel + 3 custom-user adjustments
Electronics
Horizontal & vertical scan freq.: 15-80kHz/48-100Hz (freq. Max H = UXGA 60Hz)
Video signals compatibility: PAL (B,G,H,I,M,N,60); SECAM; NTSC 3,58; NTSC 4,43 automatically selected,+ 1080i 50Hz
HDTV: ATSC (480p, 720p, 1080i, 1080p); 576p PC graphic standard: VGA, SVGA, XGA, SXGA, UXGA (1600x1200 60Hz)
DCDi™ by Faroudja: FLI2310
Contrast ratio (Full ON/ Full OFF): >3500:1
Color temperature: 36 preset color temperatures selectable by OSD
Special adjustments: noise reduction, fleshtone regulation, overscan, Live Colors Management (LCM) and Gamma adjustments
Intelligent picture memory functions: 24 - 3 for each input.
Inputs/Outputs
1 x Composite Video (RCA)
1x S-Video (mini Din 4 pin)
1 x RGBs/YCrCb (4x RCA)
1 x RGBHV (D-Sub 15 pin)
1 x HDMI™ - - HDCP
1 x OUT Digital Audio (Toslink)
1 x RS232 (D-Sub 9 pin)
1 x OUT 12V 100mA (via Jack) active when the projector is ON
1 x OUT 12V 100mA (via Jack) active when 16:9 format is selected
General Specifications
Software control: upgradable via RS232 serial interface
Power consumption: 170W max
Mains voltage range: 120-240Vac ±10% (48/62Hz)
Weight: 12.8 lbs (5.8Kg)
Dimensions (WxHxD): 13.8”x6.8”x12.5” (350x173x318mm)
Supplied Accessories
Installation and User Manual
AC power cords (EU, UK ed USA) 6.6 ft (2m)
Backlit remote control and batteries
HDMI™ cable - 6.6 ft (2m)
Optional Accessories
HT BRKT floor and ceiling mounting bracket
HTR01 universal remote control

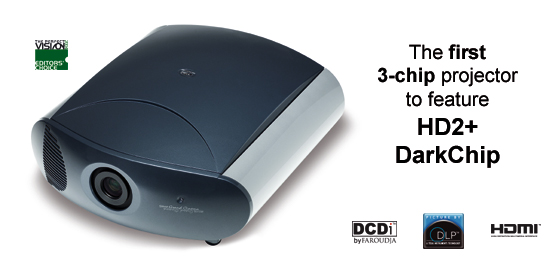

| HT500 E 3-chip projector: a performance that surpasses any expectation |
||
|
|
Light Engine
DLP™ Type: 3-chip DMD (HD2+ DarkChip2™ chip).
Resolution: True 16:9 (1280 x 720 pixels)
Lens: High quality, high resolution improved optics for higher contrast and better black level with both motorized zoom and focus adjustments
Lamp power consumption & life time: 250W UHP; 1500 hours (*)
Installation
Lens shift: V +13° - 5.5°; H +/-3.9°
Digital keystone: V +/-18°; H +/-10°
Picture size: 50-300 inches diagonal
Aspect ratio: 4:3, 16:9, Anamorphic, Letterbox, 3 custom-user (H&V) adjustments, panoramic and pixel-to-pixel
Lens options
Throw ratio 1.44 - 1.8:1 zoom
Throw ratio 1.2 - 1.44:1 zoom
Throw ratio 1.8 - 2.4 :1 zoom
Throw ratio 2.4 - 3.6:1 zoom
Throw ratio 3.6 - 5.6:1 zoom
Electronics
Horizontal & vertical scan freq.: 15-80 KHz / 48-100 Hz (max horizontal freq. corresponding to UXGA, 85 Hz)
Video standards and graphic resolutions: PAL B,G, H, I, M, N, 60, SECAM, NTSC 3.58 & 4.43 automatically selected; HTDT ATSC (480p, 720p, 1080i, 1080p) PC graphic standard up to UXGA (1600 x 1200 pixels).
Deinterlacer & processing: On-board DCDi™ by Faroudja (FLI2310). 3:2 & 2.2 pull-down sequencing automatically detected
Contrast ratio (Ful ON / Full OFF): >4300:1
Color temperature: 3 preset color temperatures + a RC user adjustment acting directly on each color (R, G, B)
Special video adjustments: noise reduction, fleshtone regulation, gamma correction, Microvision Anticopy Pulses Cleaner, Image panning and zooming.
Other special adjustments: memories/overscan
General Specifications
Control: control software upgradable via RS232 serial interface
Power Consumption: 340W
Mains voltage range: 120-240 Vac, +/- 10% (48/62Hz)
Cabinet dimension (WxHxD): 540x210x615 mm (21,25”x8.27”x24.21”)
Weight: 28 Kg. (61.7 lbs)
Inputs/Outputs
1 x composite video via RCA connectors
1 x S-VHS via mini Din-4 pin
1 x RGB via DB15 HD connector
3 x RGBH/V YCrCbH/V via RCA connectors
1 x RGBH/V YCrCbH/V via 5 BNC connectors
1 x DVI via DVI-D connector
1 x HDMI™-HDCP
1 x optical S/PDIF audio output from HDMI™
1 x RS232 on Dsub 9 pin connector
2 x jack 12V power outputs
Supplied Accessories
Installation and user manual
AC power cords (EU, UK, and USA); length 2 m
Backlit remote control and batteries
HDMI™ cable, length 2 m
DVI-HDMI cable, length 2 m;
Optional Accessories
HT BRKT ceiling mounting bracket
| dVision 1080p |
500-2500 ANSI Lumens 6000 : 1 Contrast With IRIS 1920 x 1080 Pixels |
|
Digital Projection's new dVision 1080p features cutting edge DLP display technology utilzing a .95" DarkChip3 TM DMD for native 1920 x 1080 resolution. Dual seven-segment color wheels produce a user adjustable 500-2500 ANSI lumens and 6000:1 contrast. Connectivity to input devices is provided via Digital Projection's VIP 1000 , an external video processor featuring the Realta integrated circuit from Silicon Optix. Among other capabilities, the VIP 1000 employs true 1080i to 1080p de-interlacing, HQV video enhancement, dynamic noise reduction, adaptive scaling and 10 bit processing, all tailored to optimize the performance of every source presented to the dVision 1080p display. The dVision 1080p is the new standard for outstanding single-chip display technology. |
||
Please Call for Pricing
| Mercury 5000gv |
4,500 ANSI Lumens >1200 : 1 Contrast 1024 x 768 Pixels |
|
Digital Projection's MERCURY 5000gv provides our legendary 3-chip DLP™ performance in a cost-effective chassis. The XGA native resolution MERCURY 5000gv is powered by 4,500 ANSI lumens and supplies a >1200:1 contrast ratio. Each of the projector's .7-inch Dark Metal DMD's has a grayscale depth of 14-bits, which together create more than four trillion on-screen colors. The rugged and incredibly functional MERCURY 5000gv is the ideal solution for commercial A/V, Fortune 1000, education, retail, worship, broadcast, command and control, immersive visualization and public displays. |
||
Please Call for Pricing
| TITAN 1080p-250 |
2,000 ANSI Lumens 5000 : 1 Contrast 1920 x 1080 Pixels |
| Digital Projection's single-lamp TITAN 1080p-250 employs the latest in dark metal, 3-chip DLP™ technology to produce 2,000 lumens and 5000:1 contrast. Powered by a single long -life 250-watt lamp, the versatile TITAN 1080p-250 offers improved contrast, and an adjustable brightness level that is perfectly matched for home cinema applications with screens from 6' to 16' wide. The 1080p-250 also features seven-point color correction, producing the widest color space of any projection system available to the Home Cinema market. User-selectable Xenon color mode, and super-accurate user control over the projector's colorimetry, assures accurate white point definition with extensive control over gamma, color and grayscale tracking. | |
